Q-Switched 1064 Single / 1064 PDP / 1064 NON-Q / 532 Single + LPS Long-Pulsed
How will Finebeam empower your clinic?
Contact UsFinebeam Dual is an advanced multi-platform Nd:YAG laser system by SNJ Medical, offering both Q-switched and Long-Pulsed modes. One of very few systems in the market that can offer both laser capabilities within a single machine. This system is distinguished by its dual-chamber design, superior beam quality, stable power supply and long-term durability. Unlike other laser systems that use passive resonators known for their irregular and lower energy output, Finebeam Dual features an ACTIVE resonator with electro-optic Pockels cell technology. This allows for precise control over pulse energy and duration, enabling stable, high-powered pulses that can effectively target and break dermal pigment.
Engineered with everyday usability the lightweight, ergonomic articulated arm and handpieces support longer treatment sessions. Built-in accessory tray for convenient tool access. Compact footprint and quiet operation make it ideal in any treatment room.
By integrating two essential laser systems into a single platform, this device streamlines treatment capabilities and eliminates the need for multiple machines. With no consumable costs and minimal maintenance requirements, it supports high profitability and long-term value.
Features a large 10.3-inch touchscreen interface designed for intuitive navigation and operation. Includes preset clinical settings to support new users. Manual mode treatment parameters are customizable with up to 5 memory settings available.
Finebeam Dual high peak power offers a wide range of energy outputs up to 2.2 J in PDP mode, with adjustable pulse frequencies up to 10 Hz. The articulated arm is engineered for long-pulsed delivery of high energy, with outputs reaching up to 60 J.
Explore Cutting-Edge Technology
Q-Switched Mode (1064nm & 532nm)
Q-Switched offers four versatile QSW modes 532 nm, 1064 nm, 1064 nm PDP and 1064 nm Quasi. Each mode is tailored to address specific skin concerns with precision and efficiency. The Q-Switched Nd:YAG Laser mode delivers ultra short, high-energy pulses (in NS) of light into the skin, targeting pigment, ink and specific skin structures with extreme precision. The pigment absorbs the intense laser energy and shatters due to rapid thermal expansion. This photo-acoustic effect occurs without damaging the surrounding tissue.
Long-Pulsed Nd:YAG (1064nm)
Laser mode delivers longer duration pulses (in MS) which allows the laser to penetrate deep in the dermis effectively targeting the deeper skin structure. This controlled heating effectively targets the tissue without causing thermal damage to the epidermis.
Advanced Pulse Technologies
Standard Handiece

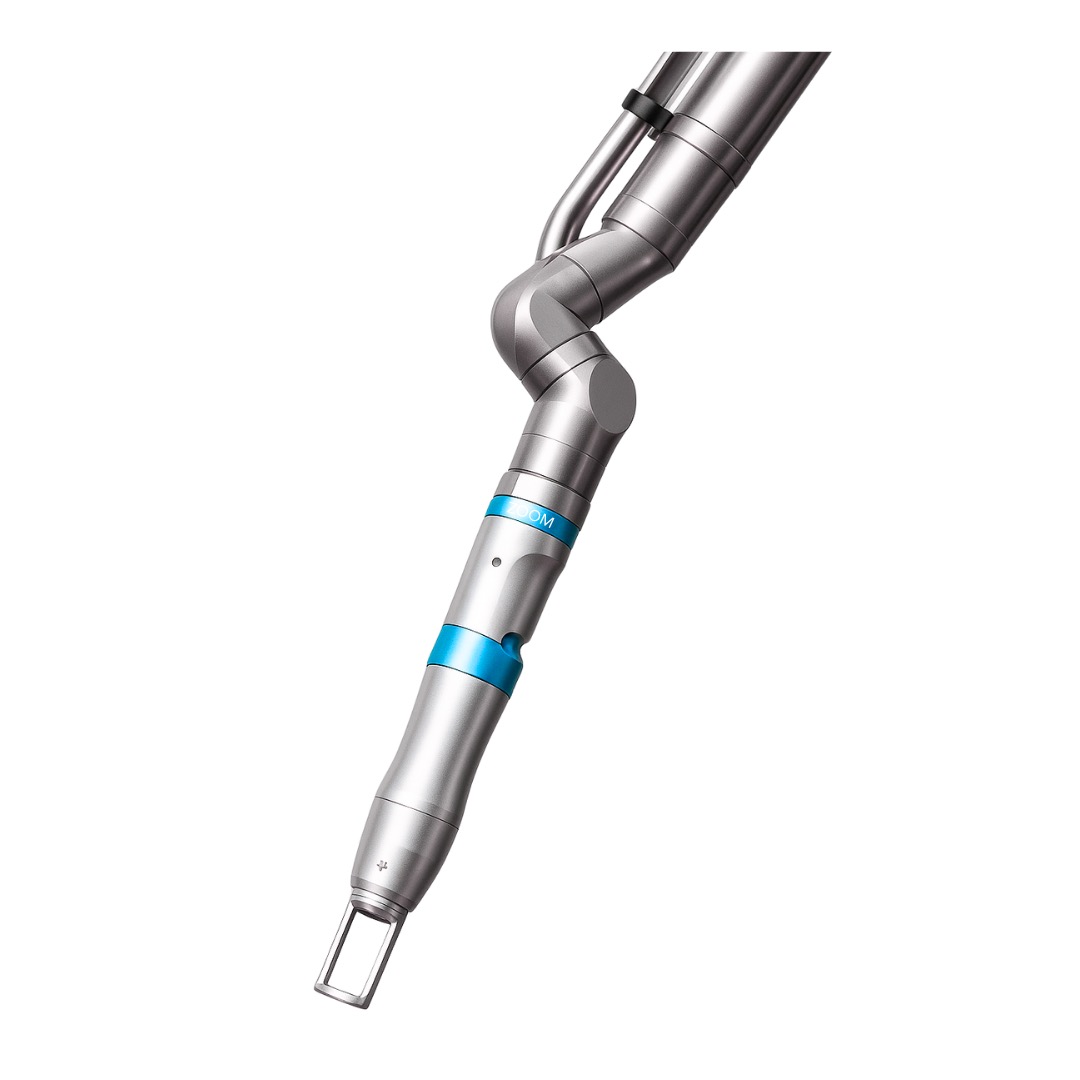

The Zoom Collimation handpiece is a reliable, all-in-one solution designed to handle a full range of treatment modes, including Q-Switched, Long-Pulsed, PDP, and Quasi, using both 1064 nm and 532 nm wavelengths. Lightweight and easy to handle, it connects effortlessly to the articulated arm, making treatments smoother for practitioners and more comfortable for clients. Its ergonomic design and precise control make it a trusted choice for both clinical and aesthetic use.
Adjustable Spot Sizes:
Easily switch between spot sizes without changing the handpiece, ranging from 2 mm to 10 mm at 1064 nm and 1 mm to 7 mm at 532 nm, for smooth, uninterrupted treatment. As you adjust, the selected spot size is automatically shown on the screen, and the fluence updates in real time, helping ensure safe, accurate energy delivery every step of the way.
Treatment Offerings - *Suitable for All Skin Types
Genesis
Skin Tightening
Acne Erythema
Telangiectasia
Vascular Lesions
Scar Treatment
Pore Reduction
Rosacea
Skin Rejuvenation
Active Acne
Diffused Redness
Hair Removal
Optional Handpiece
The MLA (Micro Lens Array) handpiece is an advanced accessory designed to enhance treatment precision and optimize energy delivery, similar to the performance of a Pico laser. Utilizing a specialized lens array, this fractional handpiece divides the laser beam into microscopic beams that form a uniform honeycomb pattern following a Gaussian energy distribution—highest at the center and gradually tapering off toward the edges.
This fractional delivery allows for precise and controlled treatment of the skin concerns while minimizing the impact on surrounding tissues. As a result, it ensures maximum efficacy with minimal thermal damage, leading to improved patient comfort, faster healing and exceptional clinical outcomes.
Treatment Offerings *Suitable for All Skin Types
Pore tightening
Acne Scars
Rejuvenation
Anti-Aging
Fine Wrinkles
Collagen Production (LIOB Effect)
MLA provides the ability to change spot sizes during treatments without the need to change handpieces.
Equipped with 120 Micro Lenses. The beam from the MLA Handpiece has 100 effective spots for 10 mm spot size, with consistent spacing distance of 0.25~0.5 mm.
Optional Handpiece

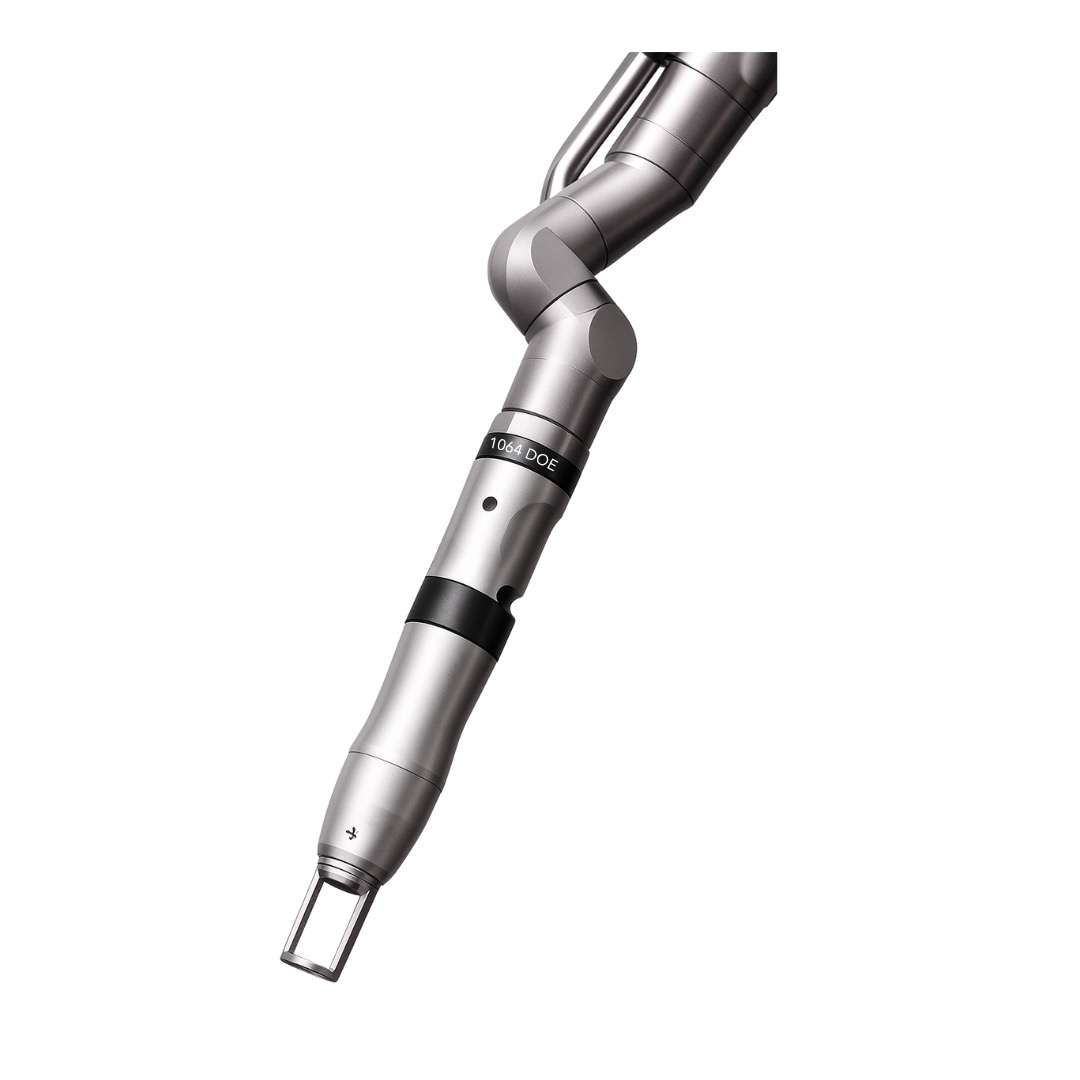

The DOE (Diffractive Optic Element) handpiece delivers a fractional 7×7 mm spot size and shapes the laser beam into a uniform “Top Hat” profile for consistent, even energy delivery. This precision design minimizes thermal damage and enhances treatment safety, especially on sensitive or pigment-prone skin. Ideal for laser toning, melasma, seborrheic dermatitis, and other pigment-related conditions, the DOE handpiece offers predictable results with reduced risk of irritation and minimal downtime.
Treatment Offerings *Suitable for All Skin Types
Pigmented Lesions
Seborrheic Dermatitis
Thermally Sensitive Skin
Laser Toning
Melasma
Skin Rejuvenation
LIOB Effect with MLA & DOE
The LIOB (Laser Induced Optical Breakdown) effect creates micro-explosions in the skin, forming cavitation bubbles that stimulate collagen remodelling. The MLA handpiece focuses laser energy into 100 micro-spots within a 10mm area, preventing heat buildup and side effects. By delivering higher energy at each spot’s center, MLA optimizes LIOB for effective skin resurfacing and collagen stimulation. This technology enhances precision, safety and efficacy for non-invasive skin rejuvenation
Explore The Advantages
Designed for Results – Trusted by Providers, Loved by Patients:
Dual-mode Nd:YAG laser: Q-Switched and Long-Pulsed
Two wavelengths (1064nm & 532nm) for versatile treatment options
Targets pigmentation, vascular lesions, and tattoos
Fractional MLA handpiece for toning, scars, and texture improvement
Safe and effective for all skin types, including darker tones
Minimal downtime with non-ablative treatment options
Clinically proven for melasma, lentigines, and acne scarring
Ideal for skin rejuvenation, tightening, and collagen stimulation
All-in-one platform for comprehensive laser treatments
At Complete Pro Tech Inc., we provide industry-leading medical aesthetic devices engineered for safety, precision, and clinical efficacy. As a trusted distributor, we equip professionals with advanced technologies that enable a wide range of high-performance treatments. Each device we offer is backed by expert training and ongoing support, helping you deliver consistent, results-driven care with confidence.
